Dot Matrix, 7 Segment, Hybrid and Customization

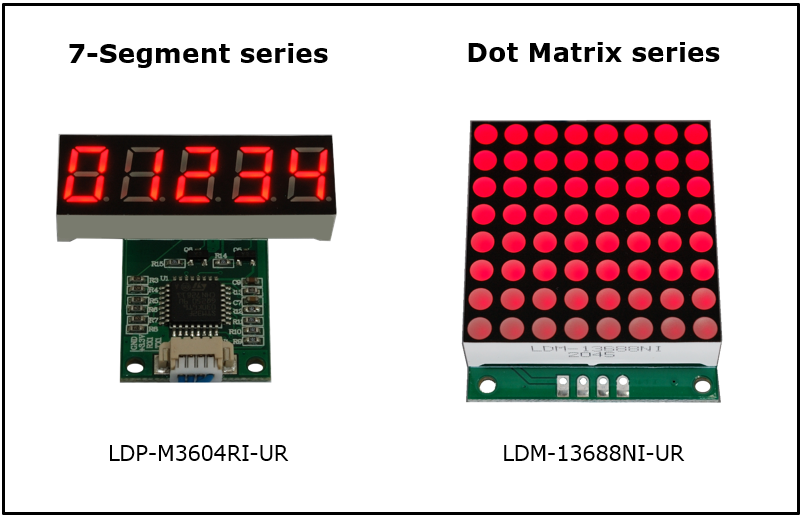

Lumex® announces the release of UART LED Displays, part number
7 Segments
Dot Matrix
Hybrid
- Three Digits
- Four Digits
- Five Digits
- Six Digits
- 8x8
- 24x8
- Four Digits with Color Segments
Those LED Displays are all come with Built-in UART Interface.
The benefits of integrating UART interface with LED Displays.
- 4 Pins for All
- Simplify Circuit Board Design
- Connect, Communicate By Wire
- High Level Programming Language Support
-
4 Pins for All
Lumex® UART LED Displays are using 4 Pins UART interface for all models. UART(universal asynchronous receiver-transmitter) is one of the most common methods for commnunication between two devices. Basically, UART takes 4 Pins, TX, RX, Ground and VSS to make this job done.
-
Simplify Circuit Board Design
Since Lumex® UART LED Displays only needs 4 Pins, this feature simplifies the design of circuit board. By reducing the number of connections, rounting of PCB is much easier than before.
-
Freedom of Position
Lumex® UART LED Displays is able to freely placed at almost any place of customer's devices, since the connection between the Display and the device is by wire not soldering. The lmiitation of main system's PCB is no longer exist.
-
Diversity of Compatiable Platform
Lumex® UART LED Displays work perfect with Raspberry Pi, ESP32, ESP8266, Arduino and many many other devices. In theory, any deivce with UART interface is able to control Lumex® UART LED Displays.
-
High Level Programming Language Support
Benefits by UART(serial) connection, Lumex® UART LED Displays are easily adapted modern programming language, for example: Python. Also Lumex is going to release related codes on Github.
Arduino Code for ESP32 is on Github
To understand more about Lumex® UART LED Displays, please use the inquiry link at the bottom to contact with Lumex Sales Representives.
