Why Choose Lumex ezDisplay?

• All ezDisplay products use the same command set for easy interchangeability.
• Integrated control MCU, driver IC, and communication interface for streamlined operation.
• Support for C, Python, Micro:bit, and serial console software.
• Compatible with Raspberry Pi, Arduino, USB-to-UART, and ESP32 modules.

ezDisplay Product Categories

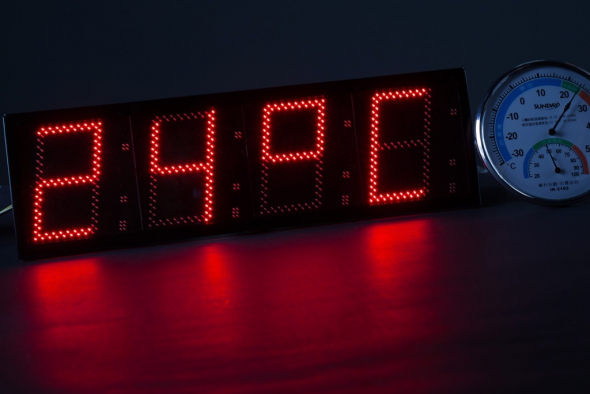

7-Segment LED Displays

The LDM-0909-Xa family introduces the first UART-enabled 7-segment LED displays, reducing wiring complexity. Ideal for numeric displays in industrial and consumer applications.

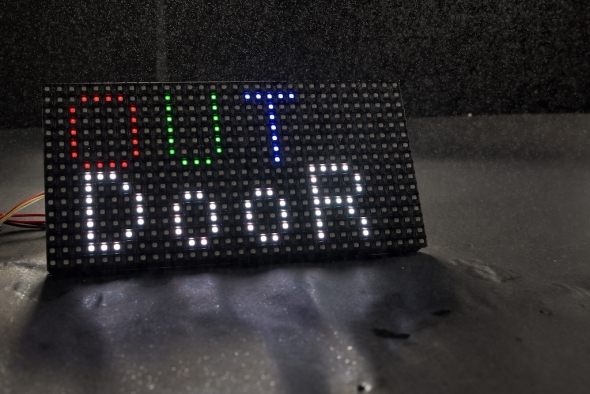

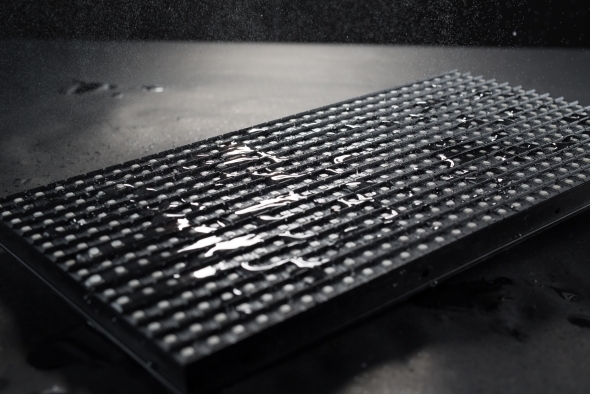

RGB LED Dot Matrix Displays – Indoor & Outdoor Displays

Standard package includes a 64x32 RGB dot matrix module with UART interface, USB power, current protection, and optional BLE 4.0 module. Perfect for indoor dynamic displays.

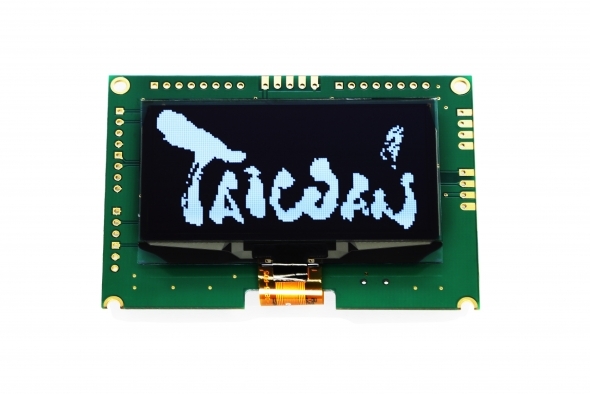

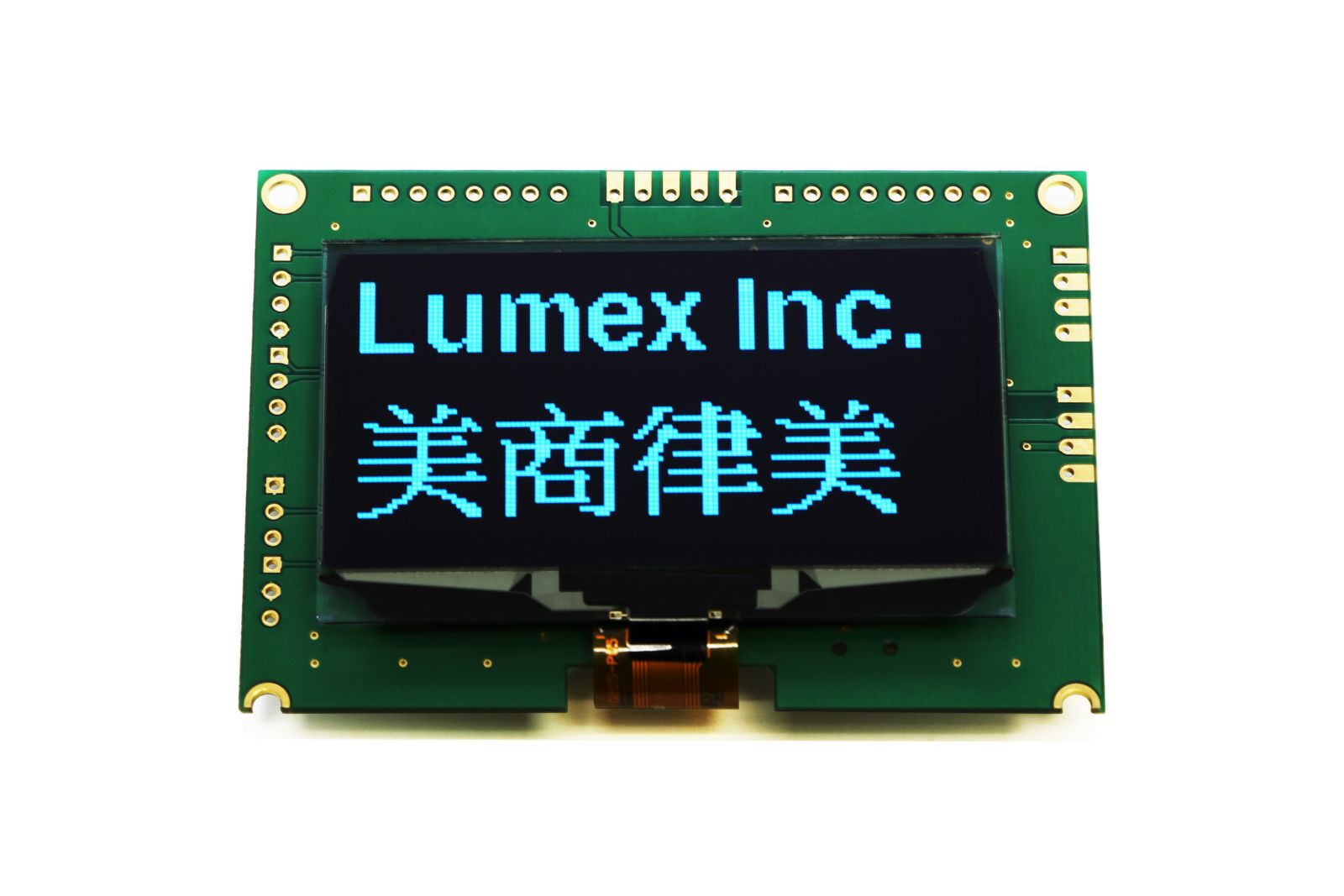

OLED Modules

128x64 pixel OLED displays with UART interface offer wide viewing angles and vibrant colors. Available in four colors. Ideal for compact, high-contrast UIs.

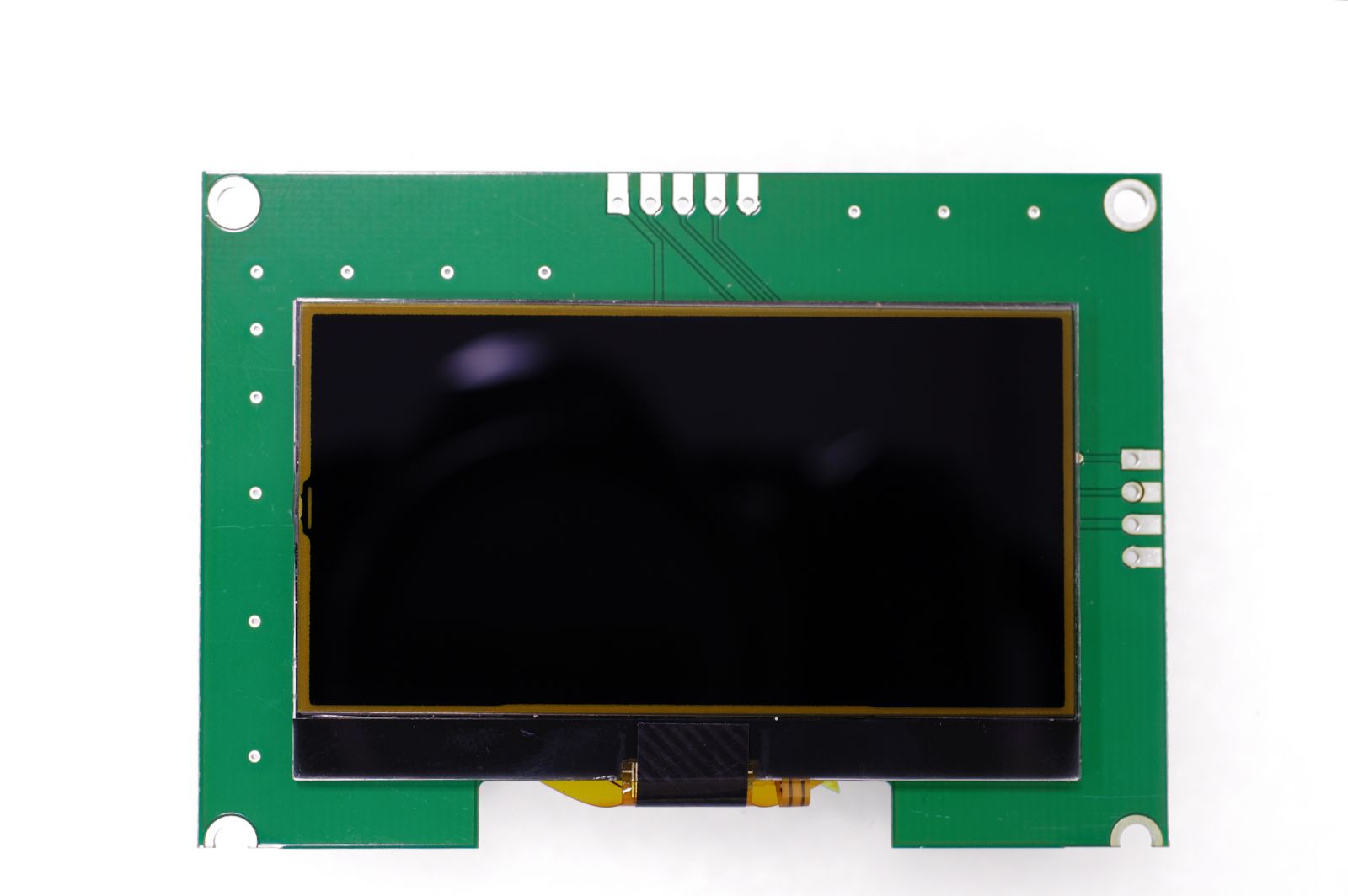

LCD Modules

128x64 pixel monochrome LCD modules with white backlight provide cost-effective alternatives to OLED for budget-conscious designs without sacrificing functionality.

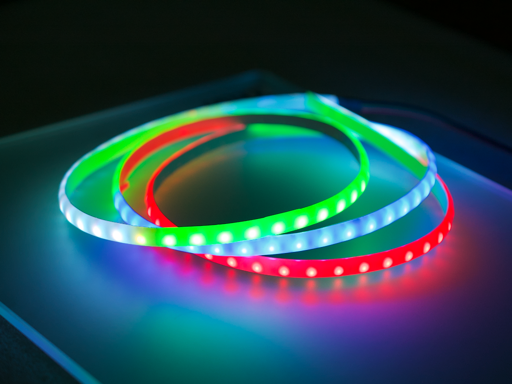

ezDisplay Controller for RGB LEDs

The LDR-Controller series can directly address up to 144 IC-embedded RGB LEDs, originally built for Lumex’s QuasarBrite™ but also compatible with WS2812. Models include:

• LDR-Controller-S: Built-in buttons to change patterns and speed standalone.
• LDR-Controller-Lite: Controlled externally for integrated solutions.

Features & Benefits Across ezDisplay Series

Features:

• UART interface with HEX and AT command modes
• Built-in fonts and patterns
• Mixed character and graphic modes
• Multi-screen display capability
• Windows 10 application available for content testing

Benefits:

• Driverless operation on any MCU or embedded system
• Simple animation and bitmap display
• Multi-language support on request
• Complex information display with minimal resources
• Easy content simulation on PC before deployment

Contact Us

For pricing, technical details, or evaluation kits, please contact Lumex Sales.
